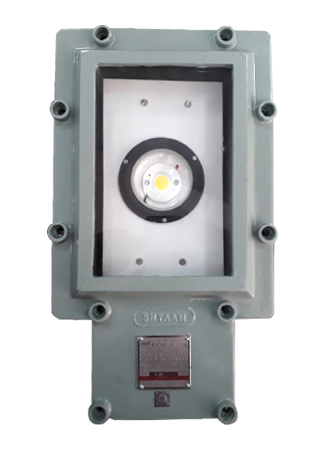

Flameproof-Weatherproof LED Bulk Head Fitting



TECHNICAL SPECIFICATIONS

  • Rating : 30/45/60/90 WATT (COB/SMD Type)
  • LED Driver make : Philips / Fulham
  • LED COB make : Bridgelux / Cree
  • Input : 240 VAC
  • Hardware : Stainless Steel
  • Gasket : O' Ring endless neoprene rubber Gasket
  • Cable entries : 3/4"ET
  • MOC : Al Die Cast LM6
  • Area of classification : Zone-1 & Zone-2
  • Gas Group : IIA, IIB, IIC
  • Ingress Protection : IP66
  • Temperature class : T6

Flameproof-Weatherproof LED Flood Light Fitting



TECHNICAL SPECIFICATIONS

  • Raing : 100/120/150 WATT LED
  • LED Driver make : Philips / Fulham
  • LED COB make : Bridgelux / Cree
  • Input : 240 VAC
  • Hardware : Stainless Steel
  • Gasket : O' Ring endless neoprene rubber Gasket
  • Cable entries : 3/4"ET-2NO.S
  • MOC : Al Die Cast LM6
  • Area of classification : Zone-1 & Zone-2
  • Gas Group : IIA, IIB, IIC
  • Ingress Protection : IP66
  • Temperature class : T6

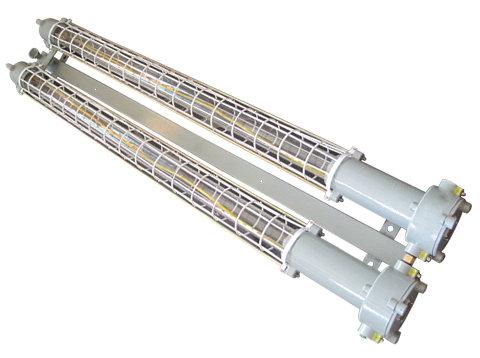

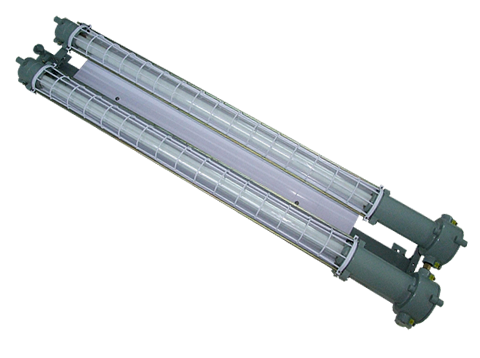

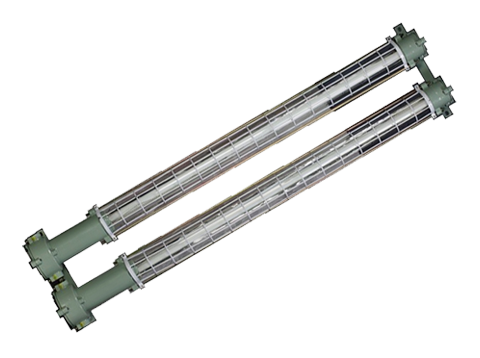

Flameproof-Weatherproof LED Tube Light Fittings



TECHNICAL SPECIFICATIONS

  • Rating : 1X18 / 2x18 / (20 Watt LED)
  • Glass : ‘Borosil Make
  • Cable entry of Size ¾’ ET 2 Nos
  • MOC : Al Die Cast LM6
  • Hardware : Stainless Steel
  • Area of classification : Zone-1 & Zone-2
  • Gas Group : IIA, IIB
  • Ingress Protection : IP65
  • Temperature class : T6

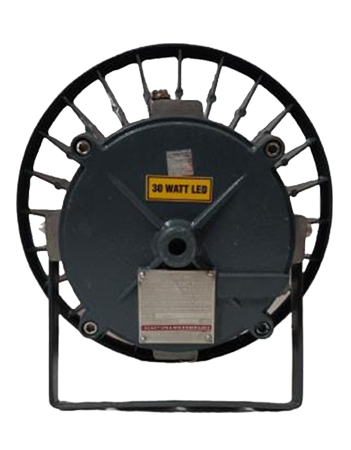

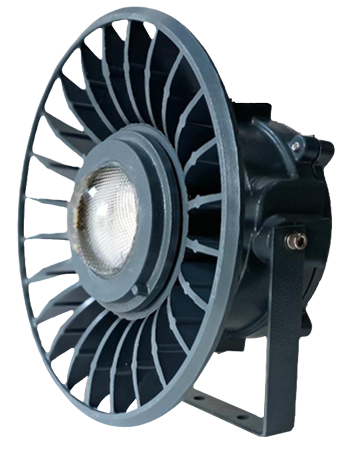

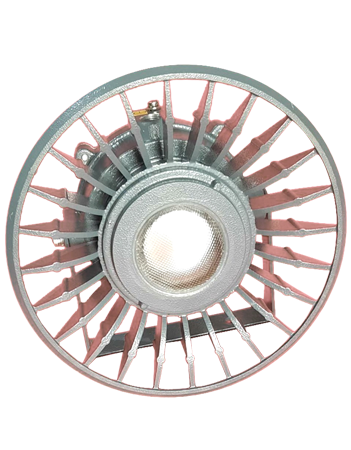

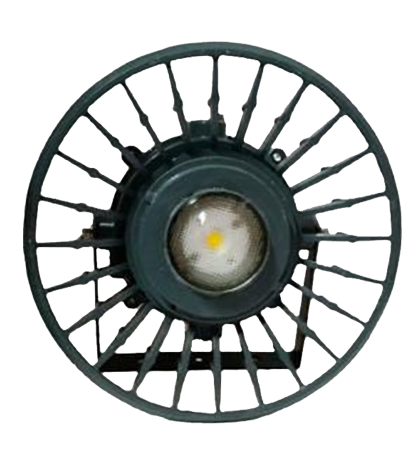

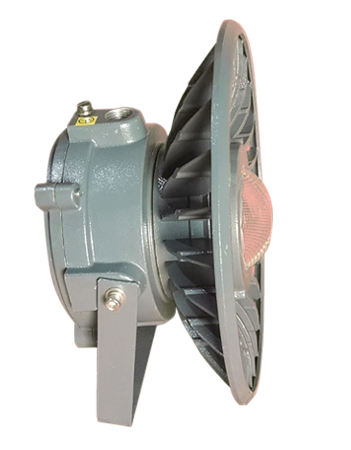

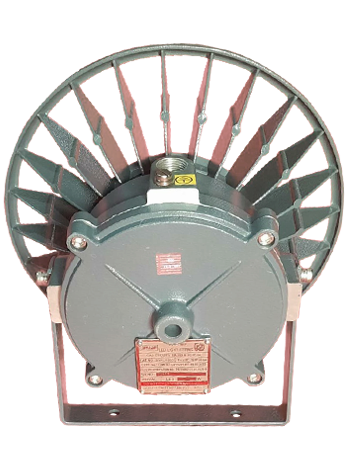

Flameproof-Weatherproof LED Well Glass Fitting



TECHNICAL SPECIFICATIONS

  • Ratings : 30/45/60/90 WATT (SUNFLOWER TYPE)
  • LED Driver make : Philips / Fulham
  • LED COB make : Bridgelux / Cree
  • Input : 240 VAC
  • Hardware : Stainless Steel
  • Gasket : O' Ring endless neoprene rubber Gasket
  • Cable entries : 3/4"ET – 2NO.S
  • MOC : Al Die Cast LM6
  • Area of classification : Zone-1 & Zone-2
  • Gas Group : IIA, IIB, IIC
  • Ingress Protection : IP66
  • Temperature class : T6
