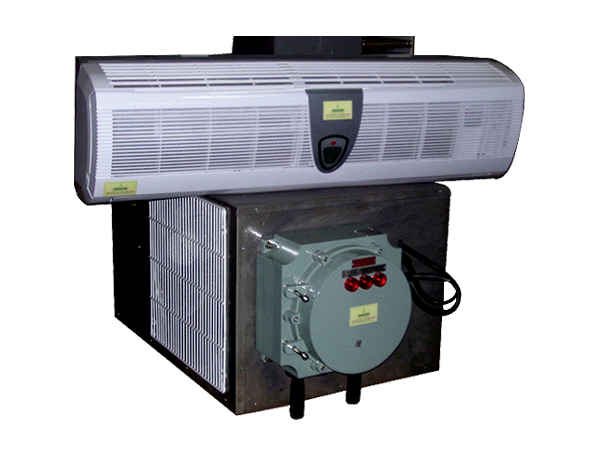

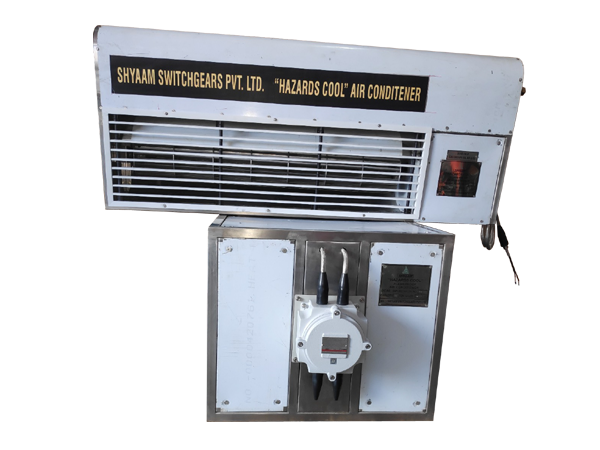

AC Unit( Split Type )



TECHNICAL SPECIFICATIONS

  • Explosion Proof Split Type Air Conditioner -1.5/2.0/2.5 Ton
  • Supply Voltage : Single Phase (230 VAC) / Three Phase (415 VAC)
  • Condensing unit : To be kept in hazardous area along with hermetically sealed Explosion Proof compressor.
  • Type of Refrigerant : R407C - Refrigerant (Eco-Friendly)
  • Control Panel : Flameproof / Weatherproof Control panel suitable for Zone I & II, Gas Groups IIA / IIB / IIC areas, consisting of MCB, On & trip indication lamps, and one set of control circuit, to be kept in Flameproof area, Temp. Controller with RTD Pt100 sensor will be provided.

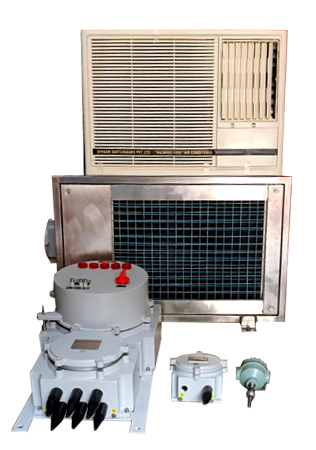

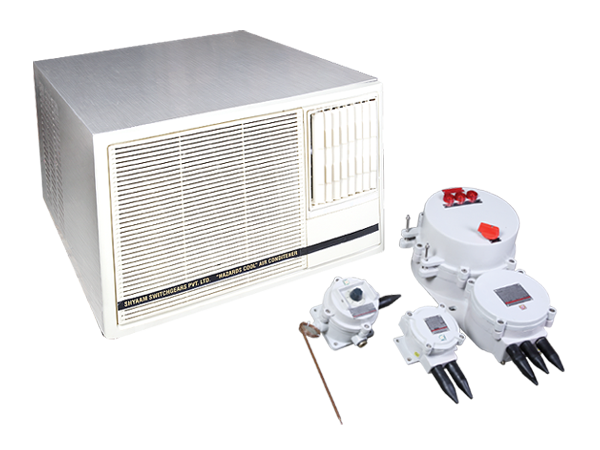

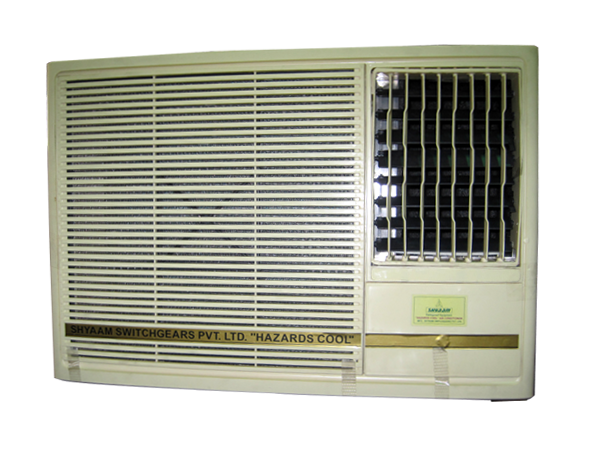

AC Unit (Window Type) / ( ATCPL-001B)



TECHNICAL SPECIFICATIONS

  • Explosion Proof Window Type Air Conditioner: 1.5/ 2 Ton
  • Supply Voltage : Single Phase (230 VAC) / Three Phase (415 VAC)
  • Cooling & Condensing unit: All the electrical parts fitted in the unit with copper tube, aluminium fins evaporator coil and hermetically sealed Explosion Proof compressor will be housed in SS304 enclosure.
  • Type of Refrigerant: R407/ R410A Refrigerant
  • Control Panel: Flameproof / Weatherproof Control panel suitable for Zone I & II, Gas Groups IIA / IIB / IIC areas, consisting of MCB, On & trip indication lamps, and one set of control circuit, to be kept in Flameproof area.

Fan (Wall Mounting Type) / ( ATCPL-002A)



TECHNICAL SPECIFICATIONS

  • Size Of Fan : 12/16/18/24/30/36”
  • Motor Rating : 0.25 HP 1440 RPM, Single / Three Phase 230 VAC
  • RPM : 1440
  • CFM : 5400
  • MOC : Al. Die Cast (LM6)
  • Gas Group : IIA, IIB
  • Area of classification : Zone-1 & Zone-2
  • Cat. No. 140

Fan (Exhaust Type)



TECHNICAL SPECIFICATIONS

  • Size Of Fan : 12/15/18/24/30/36”
  • Motor Rating : 0.25 HP 1440 RPM, Single / Three Phase 230 VAC
  • RPM : 1440
  • MOC : Al Die Cast (LM6)
  • Gas Group : IIA, IIB
  • Area of classification : Zone-1 & Zone-2
  • Front & rear wire guard along with wall mount base
  • Cat. No. 140

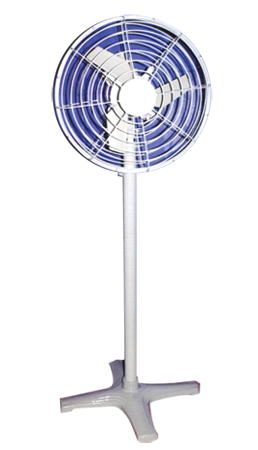

Pedestal Fan



TECHNICAL SPECIFICATIONS

  • Size Of Fan : 12/16/18/24/30/36”
  • Motor Rating : 0.25 HP 1440 RPM, Single / Three Phase 230 VAC
  • RPM : 1440
  • Type of protection : IP-55
  • MOC: Cast iron (C.I) / M.S & fabricated parts /LM6
  • Temperature class : T6
  • Fan blade :Al Die Cast (LM6) / M.S fabricated
  • Gas Group : IIA, IIB
  • Area of classification : Zone-1 & Zone-2
  • Cat. No. 140
