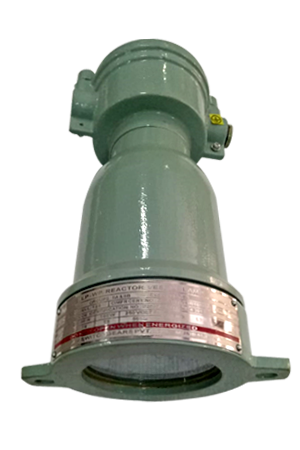

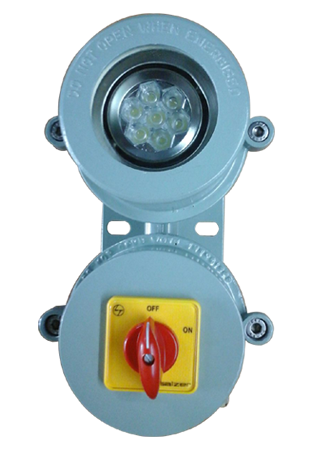

Flameproof / Weatherproof Reactor Vessel LED Lamp



TECHNICAL SPECIFICATIONS

  • RVL type : Mechanical Timer / On-off switch
  • Rating : 10 Watt
  • LED Driver : Phillips / Fulham Make
  • LED : COB Type
  • Holder, ES27 type suitable for LED Lamp 1 No.
  • MOC : Al Die Cast
  • Gas Group : IIA, IIB
  • Area of classification : Zone-1 & Zone-2
  • Cat. No. 128

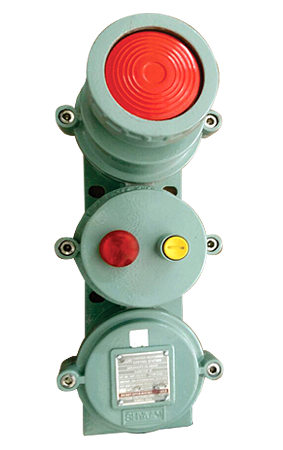

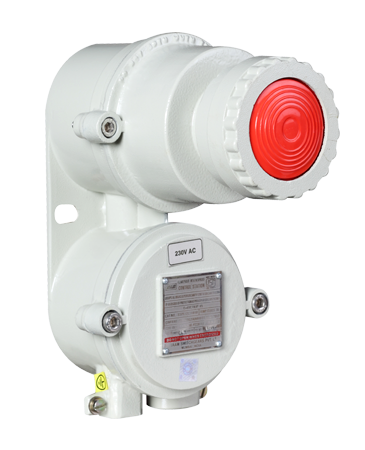

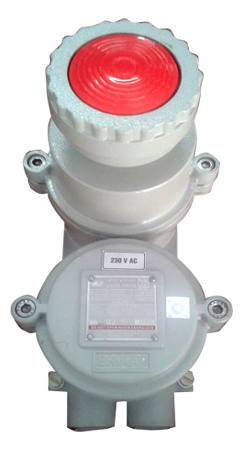

Flameproof / Weatherproof Hooter 230VAC / 24 VDC



TECHNICAL SPECIFICATIONS

  • Flameproof / Weatherproof Hooter : 230 VAC / 24 VDC (Red) Flasher / Steady type
  • MOC : Al Die Cast (LM6)
  • Gas Group : IIA / IIB / IIC
  • Area of classification : Zone-1 & Zone-2
  • IP Protection : IP 65
  • Cat. No. 186/1010

Additional features for FLP hooter

  • Enclosure for Hooter with MS Box & SS Cover
  • Enclosure for Hooter with Speaker

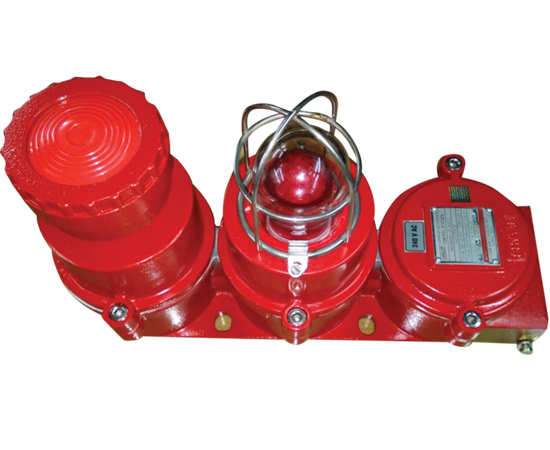

  • Enclosure for Hooter with Beacon Lamp & Push Button
  • Clean Room Enclosure for Hooter with lamp, PB

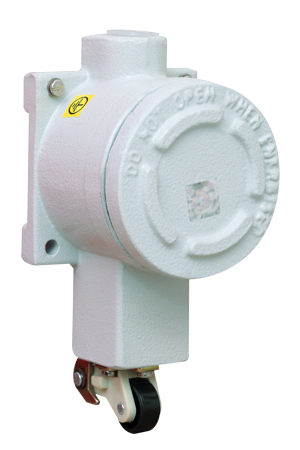

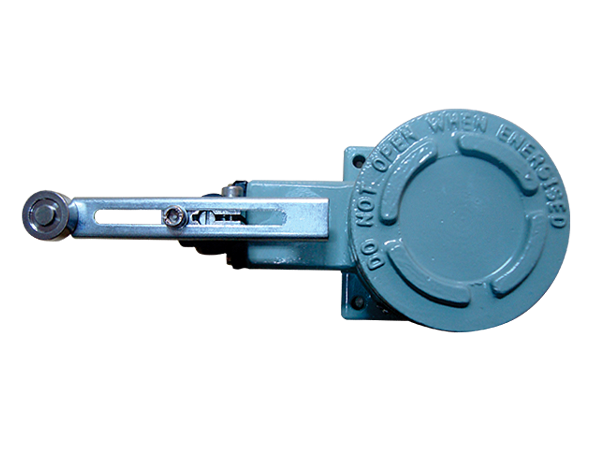

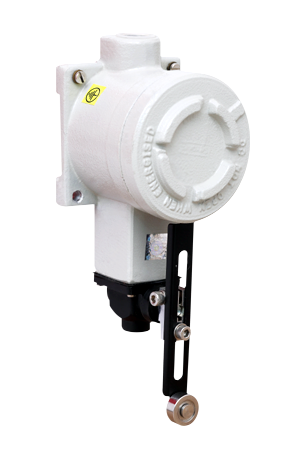

Flameproof / Weatherproof Limit Switch
Available in Gravity type, Lever type , Roller type



TECHNICAL SPECIFICATIONS

  • MOC : Al Die Cast (LM6)
  • Gas Group : IIA, IIB
  • Area of classification : Zone-1 & Zone-2
  • IP Protection : IP 65
  • Finish : Anti-corrosive epoxy powder coated
  • Contact : 1 No SPDT SWITCH

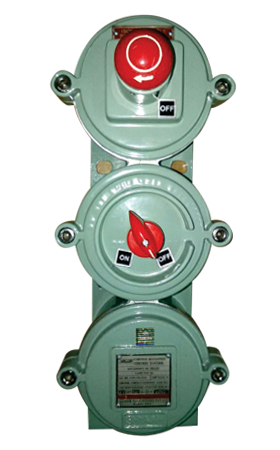

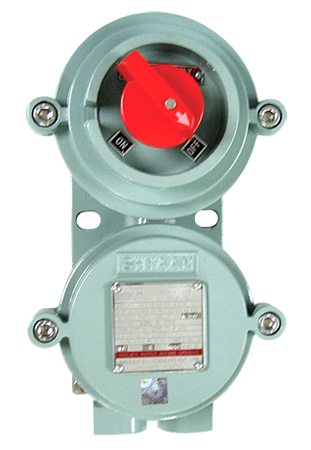

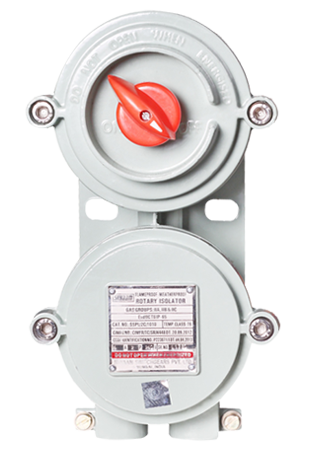

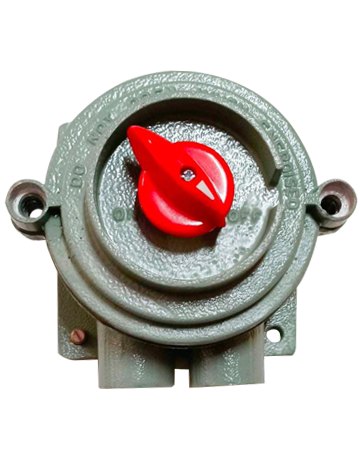

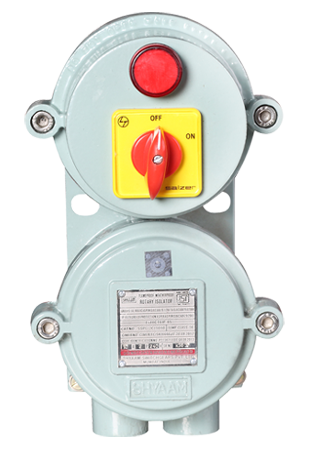

Flameproof / Weatherproof Rotary On/Off Switch
Selector Switch type: 1Pole, 2Pole, 3Pole Amp rating : (6/10/16/25/32 Amp On/Off switch)



TECHNICAL SPECIFICATIONS

  • Selector Switch type : 1Pole, 2Pole, 3Pole
  • Amp rating : (6/10/16/25/32 Amp On/Off switch)
  • Direct Entry – (1 Chamber); Indirect Entry – (2 Chamber)
  • MOC : Al Die Cast (LM6)
  • Gas Group : IIA, IIB
  • Area of classification : Zone-1 & Zone-2
  • IP Protection : IP65

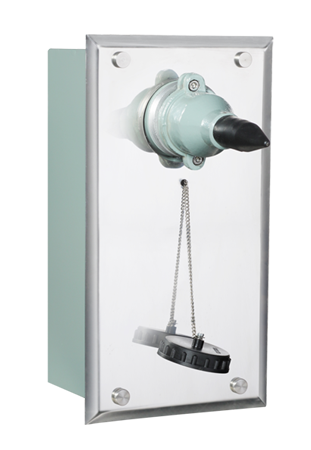

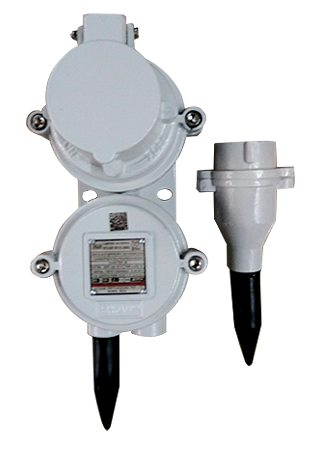

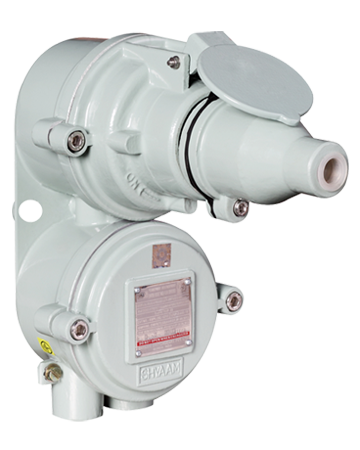

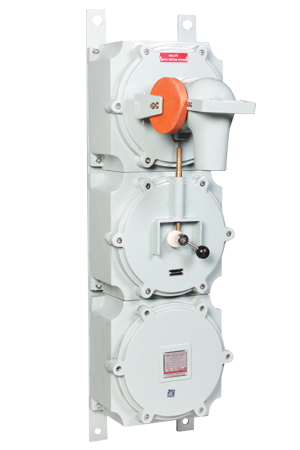

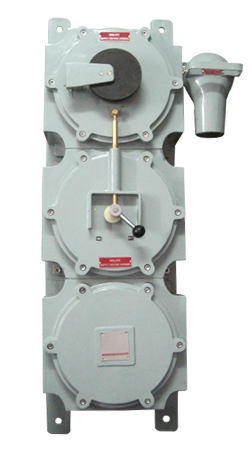

Flameproof / Weatherproof Plug-In Switch Socket



TECHNICAL SPECIFICATIONS

  • Switch Socket Rating : 16/25/32/63 Amp, 3/5 Pin
  • MOC : Al Die Cast
  • Gas Group : IIA, IIB
  • Area of classification : Zone-1 & Zone-2
  • IP Protection : IP 65

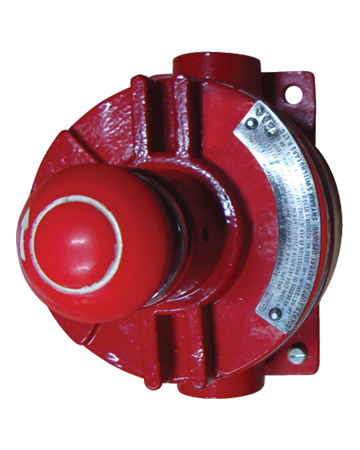

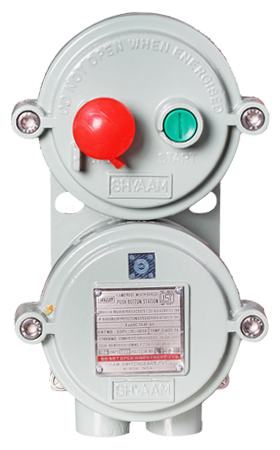

Flameproof / Weatherproof Start / Stop Push Button Station



TECHNICAL SPECIFICATIONS

  • Start Push Button with NO Element (Green Colour) : 1 No.
  • Stop Push Button Pad Lockable or Key lockable Type with NC Element (Red colour): 1 No.
  • Bottom Cable Entry of Size ¾” ET : 2 Nos.
  • Internal terminal’s & Wiring will be provided.
  • MOC : Al Die Cast (LM6)
  • Gas Group : IIA, IIB, IIC
  • Area of classification : Zone-1 & Zone-2

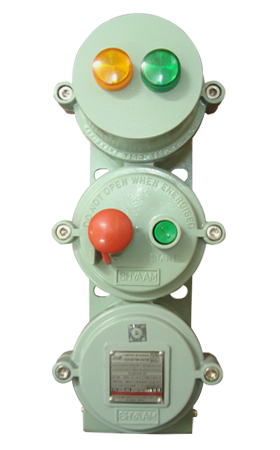

Additional features for Start stop Push Button Station

  • with Indicating Lamps / Enclosure

Flameproof / Weatherproof Forward / Reverse / Stop Push Button Station



TECHNICAL SPECIFICATIONS

  • Forward PB with NO Element (Green Colour) : 1 No
  • Reverse PB with NO Element (Yellow Colour) : 1 No.
  • Stop PB with NC Element (Red colour) Pad lockable :1 No.
  • Bottom Cable Entry of Size ¾” ET : 2 Nos.
  • Internal terminal’s & Wiring will be provided.
  • MOC : Al Die Cast (LM6).
  • Gas Group : IIA, IIB, IIC
  • Area of classification : Zone-1 & Zone-2
